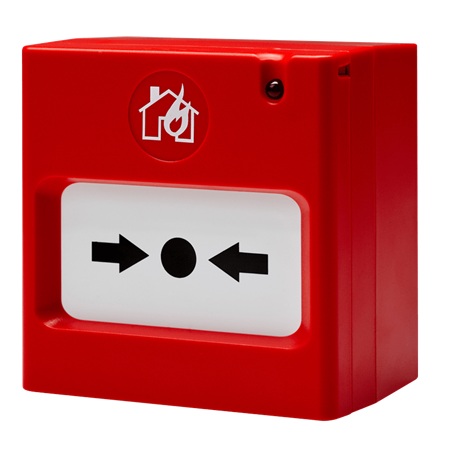

SensoMAG MCP50

SensoMAG MCP50 is a manual call point designed to work in conventional fire alarm systems. The call point has a resettable fragile working element, that sends alarm  signal to the fire alarm panel when triggered by a push in the indicated spot.

Description

  • Surface mounting
  • Resettable flexible element
  • LED indication
  • Special tool for resetting after alarm event
  • Optional protective plastic cover
  • EN54 – 11 certified
  • Rate of protection IP 40

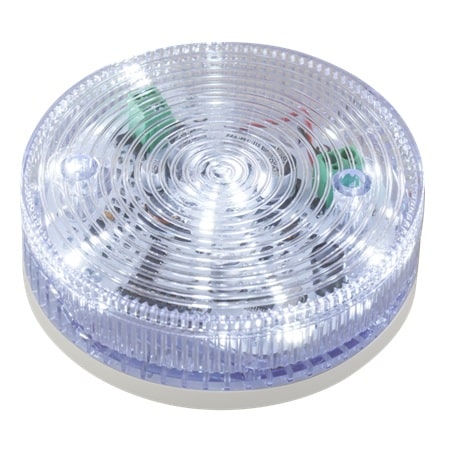

SF100 WSST

Description

  • 32 sound types selectable from the panel
  • Piezo sounder
  • White LED flash
  • Transparent plastic case
  • Certified according to standard EN54 – part 3 and 23

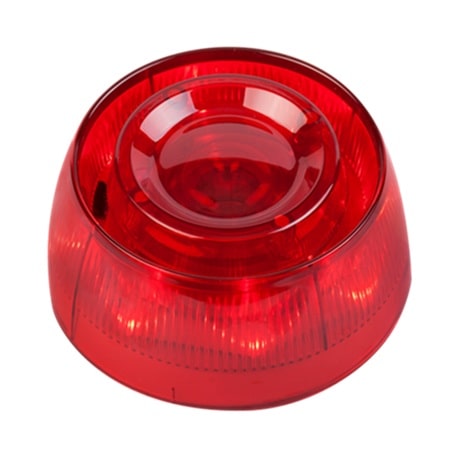

SensoIRIS WS IS

Description

  • Selectable sound level – LOW (80-88dB)* and HIGH (92-98dB)*
  • 32 sound types selectable from the panel
  • Piezo sounder
  • Loop synchronization
  • Loop powered
  • Transparent plastic case
  • EN54-3 and EN54-17 compliant

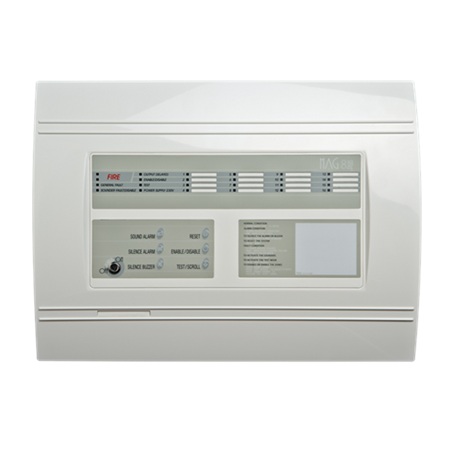

MAG8Plus

Description

  • 8 to 16 zones, expandable
  • Supports up to 512 detectors and unlimited callpoints
  • 4 monitored siren outputs – 300 mA each
  • Double knock mode
  • Siren delay
  • Supports relay expander and LOG module
  • Active EOL allowing continuous monitoring of inputs
  • Levels of access protected by means of key
  • Simple programming by means of jumpers
  • Multi language front panels
  • Plastic box

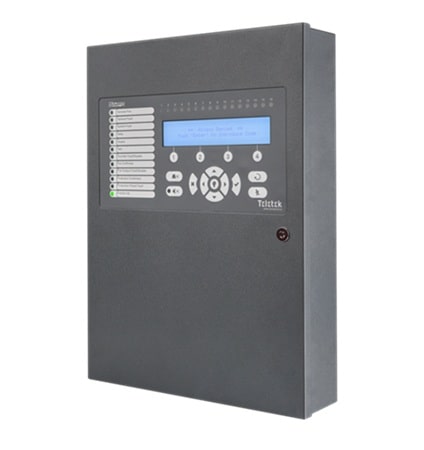

SIMPO

Description

  • Loops: Up to 2 (TTE protocol)
  • Devices per loop: 250
  • Zones: 48
  • Inputs: 3
  • Outputs (monitored, relay type): 5
  • Outputs (non monitored, programmable, relay type): 4, 15A@24VDC
  • Memory LOG: 10 240 events
  • Panels in RS485 redundant network (optional module): Up to 64
  • Thermal printer: Optional
  • Display: 4*40 symbols LCD
  • Multi language support: Yes
  • Programming:  ProsTE software
  • Standard: EN54 – 2/4
  • Transmitting events to monitoring software Observer via LAN channel (ModBUS protocol)
